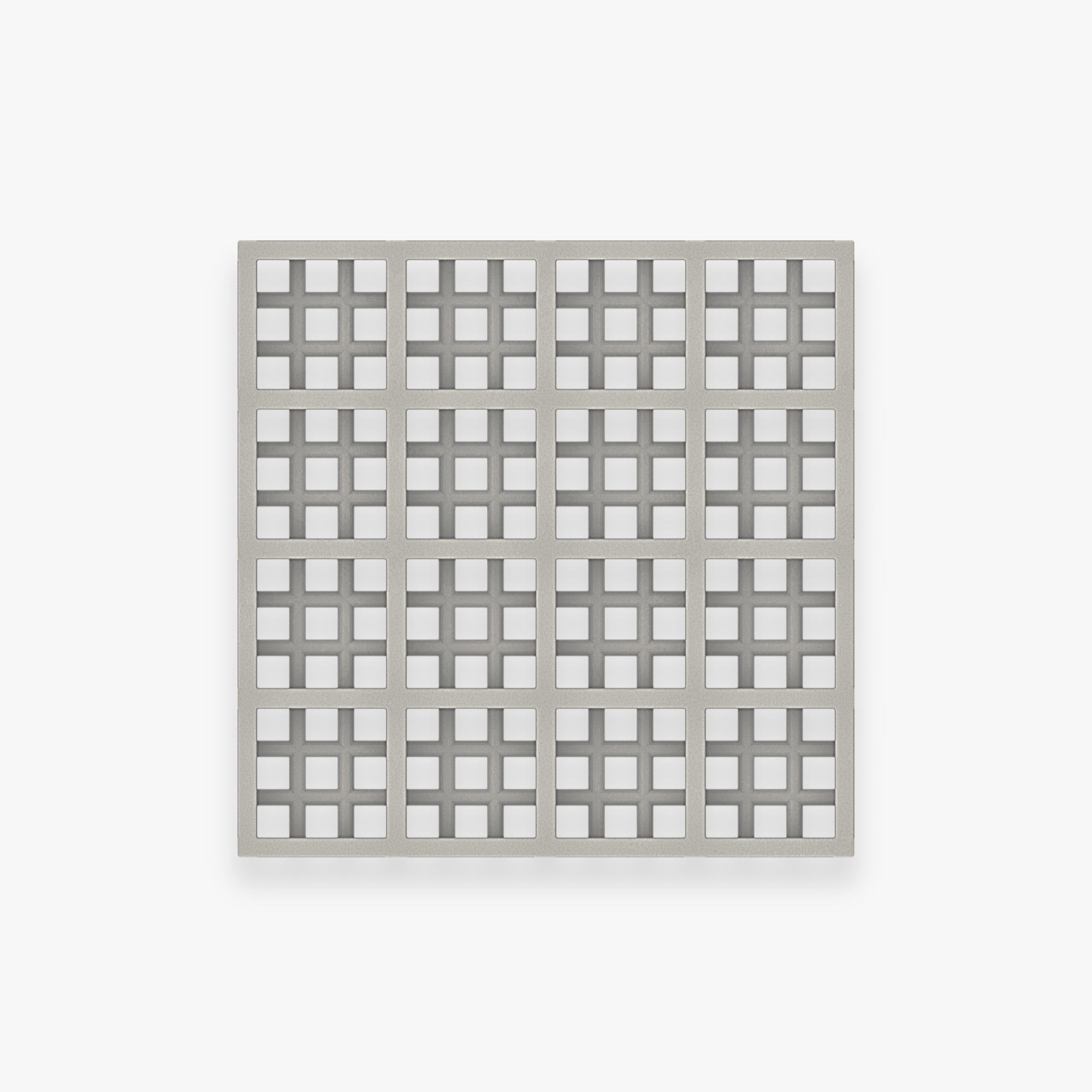

GRP grating Micro height 38 mm
incl. VAT
Load capacity: ●●●●○ (Industrial, high surface loads)
Span: ●●●●○ (For narrow trenches & pits)
Slip resistance: ●●●●○ (Secure industrial standard)

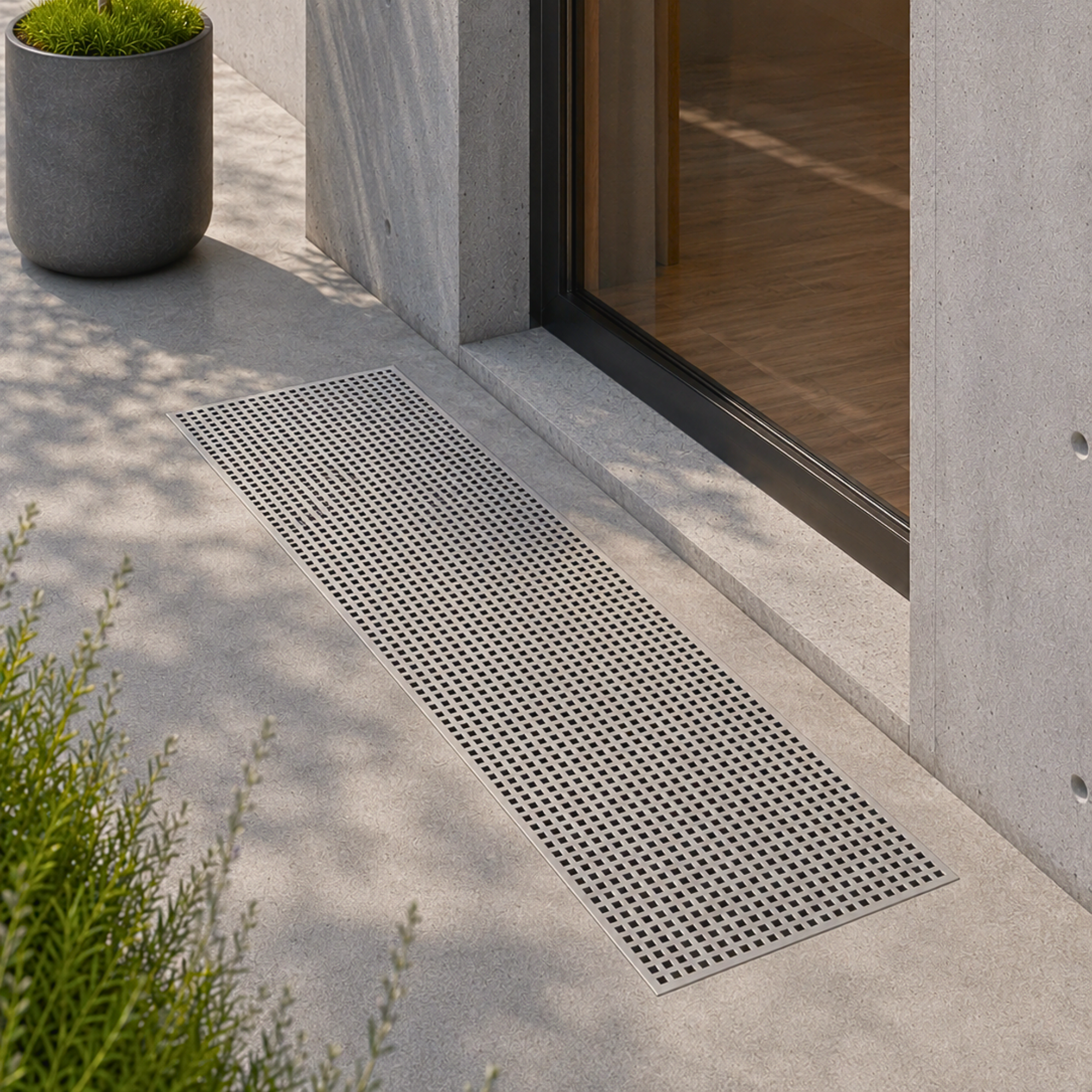

For light shafts, basement windows and covers where, in addition to protection against leaves and small debris, higher load-bearing capacity is required, our 38 mm high micro-grating offers the perfect solution.
The tight 8 x 8 mm mesh structure reliably keeps out leaves, twigs, and dirt. The greater height provides noticeably more rigidity for larger shaft dimensions compared to the 30 mm version.
Installation note: The specifications apply to walkable covers with all-round, load-bearing support for standard shaft dimensions. Larger self-supporting spans and trafficked areas are project-dependent and must be checked in advance. We will design these cases for your project together with our structural engineering partner; please contact us before ordering. The planning and execution of the substructure are the responsibility of the user.
Technical data: GRP grating mesh size 8 x 8 mm
| Material | Glass fibre reinforced plastic (GRP) |
| Clear mesh size | 8 x 8 mm |
| Area of application | Light shafts, basement windows, covers |
| Protective function | Protection against leaves, branches, small debris |
| Edges | Closed perimeter meshes* |
| Surface | Quartz sand grit |
| Dimensional tolerance (production) | ± 3 mm |
*Note on standard dimensions: Our standard formats are manufactured with closed perimeter meshes, so the exact dimension may slightly deviate from the nominal dimension. Custom cuts are made to the millimetre on open mesh, and all cut edges are subsequently sealed.
Chemical Industry
Electrical Installations
Offshore
Coastal Facilities
Swimming Pools
Plant Engineering
Workshop
Infrastructure
Renovation
Landscaping
formavit® fiberglass reinforced plastic products are inherently corrosion-resistant, extremely weather- and chemical-resistant, and electrically insulating.
This means for you: easier handling during assembly and a completely maintenance-free end result – whether in heavy industry or for a private construction project.
Custom-fit GRP solutions from South Hesse - manufactured, tested, ready for dispatch.
Cutting and processing are carried out on-site according to clear standards. This ensures you receive clean edges, reliable dimensions, and predictable delivery times.
To make your selection as easy as possible, we have categorized our GRP gratings for you according to typical areas of application:
Tip: How much a grating can withstand depends not only on its height but also on how far apart the support points of your substructure (the span) are. If you are unsure, simply use our contact form or request a personalized quote – we will be happy to advise you on your project!
For open gratings, it is best to use our special stainless steel grating clamps (V2A/V4A). These grip perfectly into the 38x38 mm mesh and fix the grating rust-free and storm-proof to the substructure.
If you want to install our closed GRP floor plates or stair treads, we recommend our weather-resistant 2K epoxy adhesive for a bomb-proof hold without drilling – alternatively, these can also be conventionally screwed.
Yes, absolutely! Glass-reinforced plastic (GRP) can be worked with similarly to hardwood.
For on-site adjustments, a standard angle grinder with a diamond cutting disc or a jigsaw with a carbide blade is sufficient.
If you want to save yourself the work on the construction site: simply use our individual cutting service directly from South Hesse! We deliver all gratings and plates ready for installation.
We produce your custom cuts at our location in Southern Hesse using state-of-the-art special saws (diamond cutting discs) to ensure particularly clean cut edges.
To ensure your GRP products arrive quickly and undamaged, we select the optimal and most cost-effective shipping method for you based on size and weight:
Important for your planning: For freight deliveries, our logistics partner usually notifies you of the delivery in advance via email or phone. This allows you to perfectly plan for goods receipt at your delivery address or construction site.
